An AVRSynth 16 layout

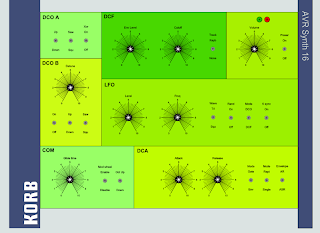

I made a layout to be printed on photopaper and be glued on an aluminum panel. I can't process the aluminum sheet by myself so I resort to glueing photopapers allover the place. :) So,
this is it, it has 8 knobs, 16 switches and volume/power and it will be ready with pots on sometime in this week.

You can find the original svg (made with inkscape) at the file repository here
